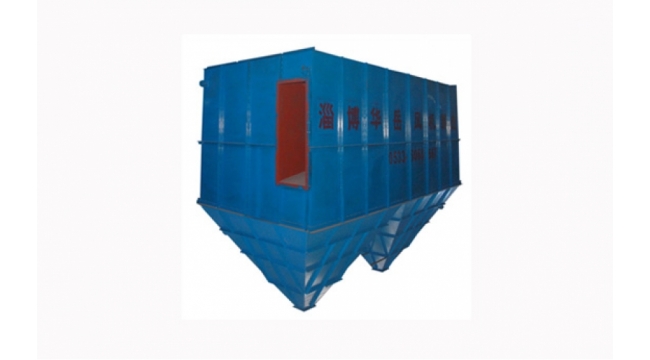

Pulse bag filter is a kind of common dust removal equipment. Its dust removal effect has been tested by the environmental protection department, and the dust removal performance index has reached the advanced level at home and abroad. Pulse bag filter is a kind of equipment with mature performance and stable technology.

Pulse bag filter on the basis of digesting and absorbing foreign advanced technology, combined with the situation of our country to develop a new type of high efficiency bag filter, which combines the advantages of auxiliary chamber blow and jet pulse bag filter, overcomes the disadvantages lack of aircraft can reverse blowing, overcome the drawback of the jet pulse dust removal, it also appears the phenomenon of secondary precipitation and efficient offline, the dust method is large in energy consumption, low dust removal effect is good, the system resistance, long service life of filter pocket, high dust collecting efficiency, etc.

There is only one room inside the sandbag, and the dust removal effect will become worse during the backblowing process. The large bag filter has a number of filtration Chambers, controlled by the program. Each filter filters and blows in turn. The whole filter operates smoothly and continuously. The cleaning process is to cut off the clean air outlet channel of the box body to make the bag in the state of no airflow, and then open the pulse valve to spray clean dust pulse with compressed air. The globe valve is closed long enough to spray clean dust into the dust hopper to prevent dust from reattaching to the adjacent filter bag or bag surface. After leaving the surface, clean the filter bag.

Pulse bag filter features:

The dust collector adopts multi-stage pulse dust removal technology, which overcomes the shortcomings of traditional pulse dust collector and box-type backblow dust collector, such as low emission concentration and low air leakage rate, and metallurgy, building materials, cement, chemical industry, electric power and other industries suitable for flue gas purification and material recovery

2. The use of monopulse air jet to stop the furnace can achieve the purpose of complete cleaning, can extend the cleaning cycle, reduce the cleaning energy consumption, reduce the pressure gas consumption, reduce the filter bag, and the corresponding use of pulse valve. Fatigue can double the service life of the filter bag and disc.

3. Under the normal operation of the system, continuous system fan repair and replacement can be carried out on the bag, elastic gasket filter bag, good sealing performance, good reliability, filter bag keel use polyhedral shape, reduce the filter bag and keel, increase the internal friction of the bag, prolong the service life of the bag, promote the bag unloading.

The upper bag extraction method was adopted, the skeleton was removed after replacement, the dirty bags were put into the ash bucket at the bottom of the box, and the bags were taken out through the feed inlet, which improved the working conditions of the bags.

The box body adopts sealing design, good sealing performance, excellent inspection door sealing material, detection kerosene leak, low leakage rate in the manufacturing process.

4. The air inlet has compact structure and low airflow resistance.
